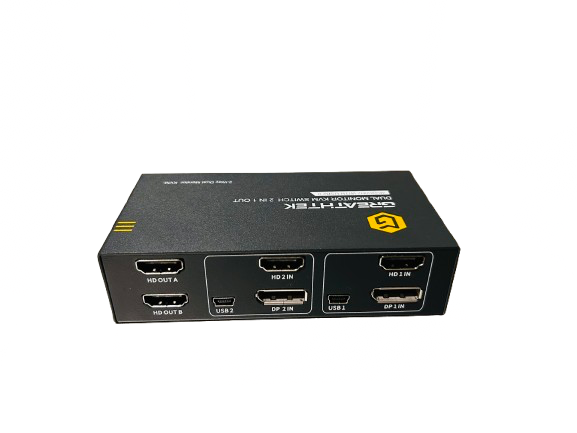

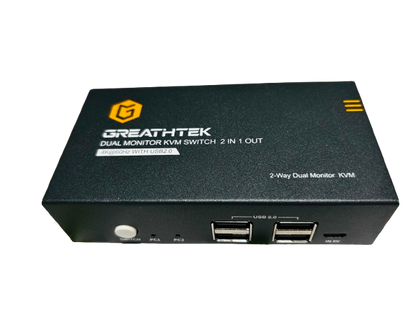

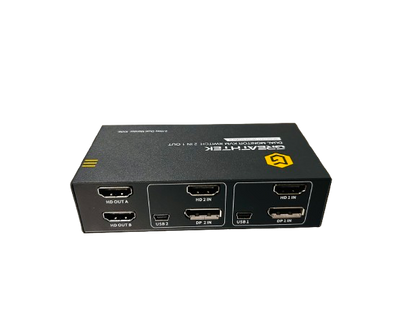

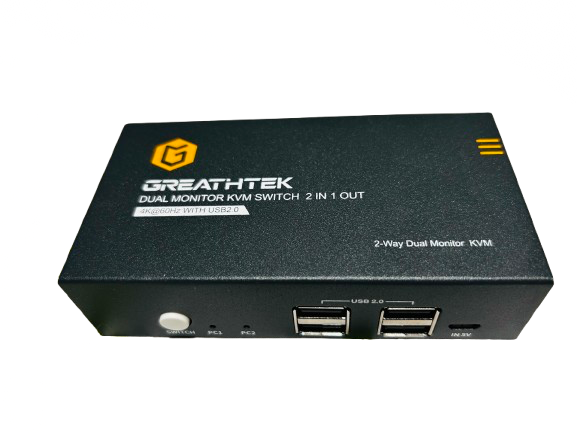

Seamlessly switch between two computers using one monitor, keyboard, and mouse. Supports DisplayPort 1.2 and HDMI 2.0 with 4K@60Hz resolution — no software needed.
Key Features:

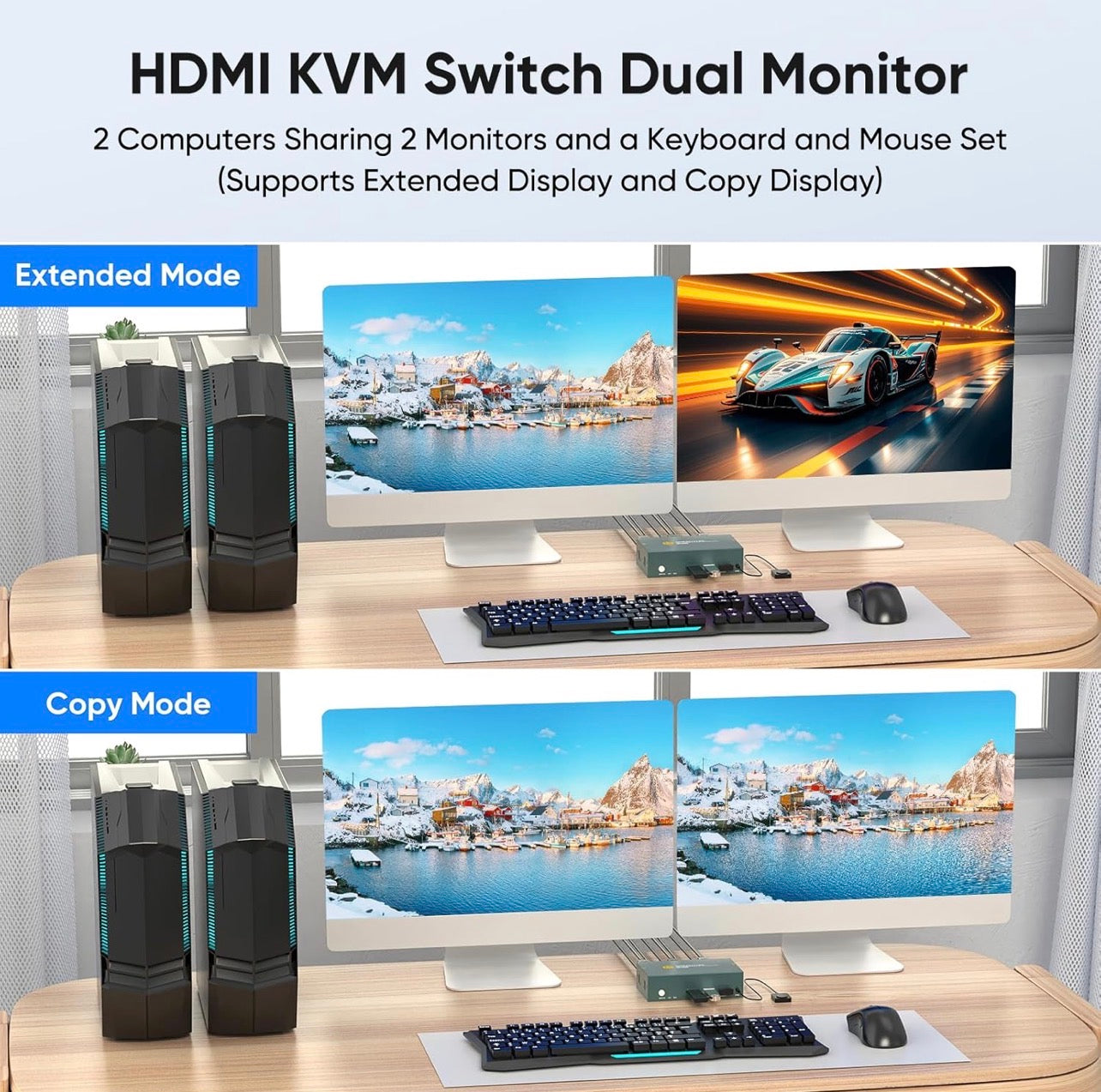

• Switches two PCs across DP and HDMI sources with one button
• 4K UHD resolution support (3840×2160@60Hz)
• EDID emulation for smooth, stable image output
• Compatible with USB 2.0 standard
• Plug and play — no drivers or setup required
• Built-in auto-match for source and display compatibility
• Supports DP1.2 and HDMI 2.0 standards
Specifications:
Standards: DP 1.2, HDMI 2.0
Maximum pixel clock: 600MHz
Maximum data rate: 18Gbps
Maximum resolution: 3840x2160@60Hz
Connector: DP/HDMI-A Interface
Impedance: 100Ω
HDMI Cable Range: ≤5M Resolution: 1920x1080@60Hz
Interface protocols: Mini USB
PC input interface type: USB-A
Output interface type: 4x USB 2.0
Power supply: Micro-USB 5V power supply
Power dissipation: MAX 3.5W
Operating temperature: -5°C to +70°C
Humidity: 5% to 90%
Dimension: 118x62x32mm
Warranty: 6 months free warranty
In the Box:
• 1× DP HDMI 2*1 KVM Switcher Host
• 2× DP 1.2 Cable
• 2× USB-A to Mini USB Cable
• 2× HDMI 2.0 Cable
• 4× Micro USB Cable
• 1× Foot Pad set
• 1× User Manual + Warranty Card
